Eventide H3000-D/SE

Finally found replacement part (jog wheel optical encoder) for my H3000. Adjusting any parameters was impossible when the jog wheel operated erractically. Optical encoder is an obsolete part that Eventide no longer stocks. Studio Electronics Inc. has this part ! It's little bit tricky to replace but I managed to do it and now the jog wheel operates normally.

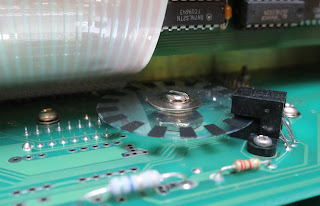

Mechanical jog wheel with the optical encoder (led + LDR).

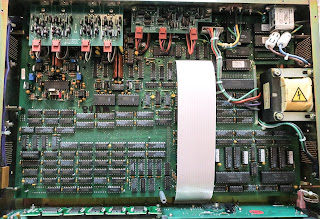

Lot of old logic chips inside the H3000 !
