Polarizing CV-Mixer

This is my prototype of Bipolar CV Mixer. Nothing really special here but very practical module in modular setup. Four inputs with level pots. One Master output with attenuator pot, one straight output and one inverted output. A nice LED-driver with a spear op-amp (one TL074). LED's show if the mixed voltage is bipolar or unipolar. I must source a dual-color led with two parallel LED's in same case. Switch selects if the input potentiometers behave as attenuators or polarisers. When polarising you can either add (cw side) or subtract (ccw side) voltages from the master-mix.

Secret Life of Potentiometers

I do not know if it is "the best return on investment" business practice or the fact that programming and CPU's are replacing the analog electronics; but the fact is that nowadays it is almost impossible to find potentiometers with odd values, odd tapers (log/rev log), or unusual terminal arrangements. I usually buy my components from Mouser which is a typical worldwide distributor of electronic components. Here is a typical search from Mousers online catalog:

Potentiometers --> 7558 matches
Stocked --> 2240 matches (where did they all go!)
Resistance=10k and taper=linear --> 349 matches

Still plenty of where to choose from.
Let's next try to find a 1M logarithmic potentiometer:

Resistance=1M and taper=logarithmic --> 25 matches

Okay, that's not very much. From these 25 I need a version that fits directly to my PCB

Termination Style=Pin --> 7 matches

This is a problem, if I want specific power rating, mounting arrangement, shaft type …
How do we get it if we can't buy it ? Tapering/loading resistors may be the answer. When a fixed resistor is connected between the wiper and ccw-lug of linear potentiometer it's behaviour changes from linear to logarithmic. If the resistor is connected between wiper and cw-lug we get reverse logarithmic behaviour. So with different tapering resistor and lin-pot arrangements it is possible to create different logarithmic potentiometers. You can also replace the fixed tapering resistor with a trimmer and adjust the exact potentiometer behaviour that you want. Pictured below I have measured and plotted some 50k lin and log potentiometers. I printed a 360° scale on a plane where the potentiometer is set up. I measured the resistance between the wiper and cw-lug by moving the potentiometer 28 identical times (28 x 10° = 280° --> effective electrical angle).

Notice the tapering resistor between wiper and cw-lug

360° scale

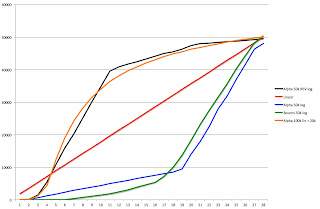

Measurements of potentiometers

Red line shows the linear behaviour. As you can see Alpha 50k log pot (blue line) is a cheap potentiometer where logarithmic behaviour is approximated with two linear segments (turning point at 19). You can compare it to Bourns 50k log pot (green line) which has more smooth logarithmic behaviour. Alpha 50k REV log pot (black line) is a real reverse logarithmic potentiometer. It seems that it's behaviour is approximated with three linear segments (turning points 10.5 and 20.5). Alpha 100k lin + 20k is my experiment with 100k linear potentiometer with 20k fixed tapering resistor between the wiper and cw-lug (orange line). As you can see it approximates nicely the reverse logarithmic behaviour of Alpha's real REV log potentiometer (it is actually much smoother). With two terminal (series) connection and tapering resistor you can get only reverse logarithmic behaviour out of the potentiometer. With three terminal (voltage divider) connection it is possible to get the log/rev-log behaviour depending if you connect the tapering resistor between cw or cww lug of potentiometer. There is also one thing that must be remembered. Total resistance of the potentiometer is smaller when using the tapering resistor. It is a normal parallel resistor connection. In my experiment 100k + 20k tapering resistor gives 16.7k total resistance (I have scaled it so that it fits in this same picture with the 50k potentiometers).

Moog Prodigy's most critical potentiometer is the filter cutoff pot that is originally a 50k reverse logarithmic potentiometer. I can use here only linear potentiometer so I must experiment with this tapering resistor method to get the exact feel that I want for the cutoff pot.

Here is a good article about potentiometers and their tapering (http://www.geofex.com/article_folders/potsecrets/potscret.htm).

Quad VCA and CV Meter PCB's

PCB-layout for Quad VCA is ready. I designed also a PCB for MFOS CV-meter (from MFOS Multifunction module).



CV Meter is a very handy utility module that shows the CV level in three input ranges (+/-1, 5 or 10V). You get immediately a picture of what is the level and polarity of your modulating control voltage. My CV Meter layout is designed for EuroRack size. After I have double checked these I can order them from ITEAD Studio (http://imall.iteadstudio.com/open-pcb/pcb-prototyping/im120418002.html).

Quad VCA

CV Meter

CV Meter front panel

Quad VCA and Nord Drum 2

I started a new Quad VCA project. This has been on hold for too long time. I started my modular synthesiser DIY-projects in the beginning of year 2000 with some Oakley Sound System modules (VCO, VCF). I have the schematics for Oakley's Basic Series VCA that uses the BA6110 OTA-chip. This chip is a high quality replacement for Rolands BA662-chip that has been used in several Roland synths (TB303, System 100M etc.). I have several BA6110 chips so it's time to put them in use (I think this chip is these days also an obsolete hard-to-find component).

Usually VCA (voltage controlled amplifier) input comes from audio output of filter or oscillator and the CV (control voltage) comes from an envelope generator (ADSR). A good VCA amplifies also other CV's. So you can use VCA to adjust the output level of LFO's and ADSR's.

VCA's are always needed in modular setups but I have a specific application in my mind. I will use this Quad VCA to control my Nord Drum 2 module together with Intellijels Quadra AD envelope generator. Here the AD-generator simulates hitting of an drum-pad connected to Nords trigger-input and VCA simulates how hard the pad is hitted.

Here is a short example how this sounds. With Quad AD and VCA I can use this method to control dynamically four Nord Drum trigger-inputs. As you can hear, Nord Drum sounds respond nicely to the hitting velocity.

This is a MOTM-size project. All the components are mounted on the PCB. Here is a picture of the 50% ready PCB-layout.
